Electric Ultra Low Temperature Control Valve
Electric cryogenic control valve is composed of electric actuator and ultra-low temperature control valve body. The valve body is made of stainless steel that has undergone low temperature cryogenic treatment.
Description
Electric ultra low temperature control valve is composed of electric actuator and ultra-low temperature control valve body. The valve body is made of stainless steel that has undergone low temperature cryogenic treatment.

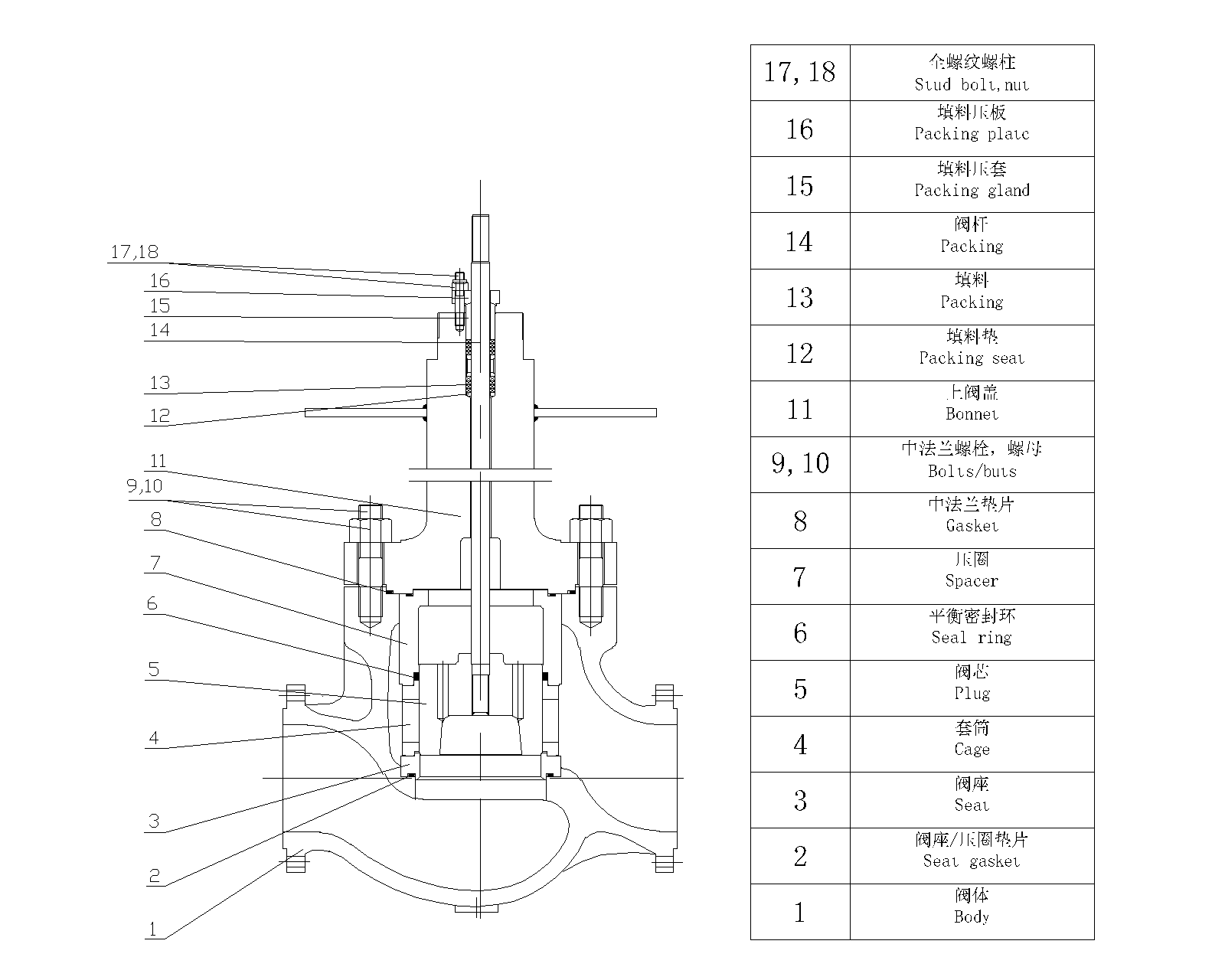

Structural characteristics
1. The electric ultra low temperature control valve has compact structure, small volume and light weight. The adjustment is sensitive and the stability is good.
2. The valve is equipped with an adjustable device, which is convenient for pressure adjustment.
3. It is cryogenically treated and can withstand -196 ℃ low temperature
4. The low temperature pressure control valve gasket has reliable sealing performance and recovery at normal temperature, low temperature state and temperature change, and has good sealing performance
Specifications and parameters
1. Nominal diameter: DN25～DN400mm
2. Nominal pressure: 1.6Mpa, 42.0Mpa, 150LB-2500LB
3. Applicable medium: liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas, liquid carbon dioxide, liquid propane, etc.
4. Applicable temperature: -196℃～+80℃
Body Face To Face Lenth:
| PN16/ class150 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| NPS | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 22" | 24" | |
| lenth | 184 | 184 | 184 | 222 | 222 | 254 | 276 | 298 | 352 | 403 | 451 | 543 | 673 | 737 | 787 | 1016 | 978 | 978 | 1067 | 1295 |
