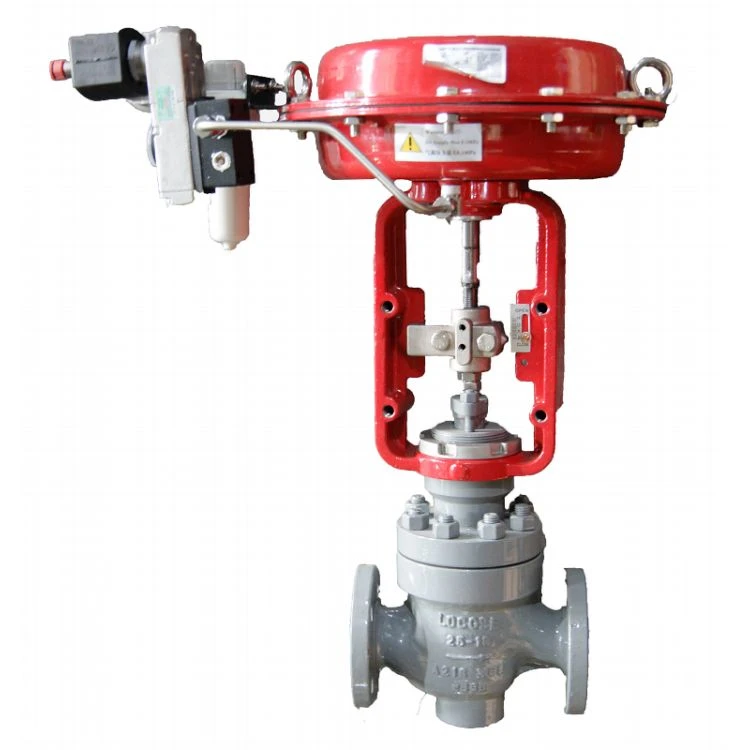

Pneumatic Fluorine-lined Control Valve is composed of two parts of the valve body of the pneumatic diaphragm actuator straight-through single-seat fluorine-lined control valve.

Description

Product Information

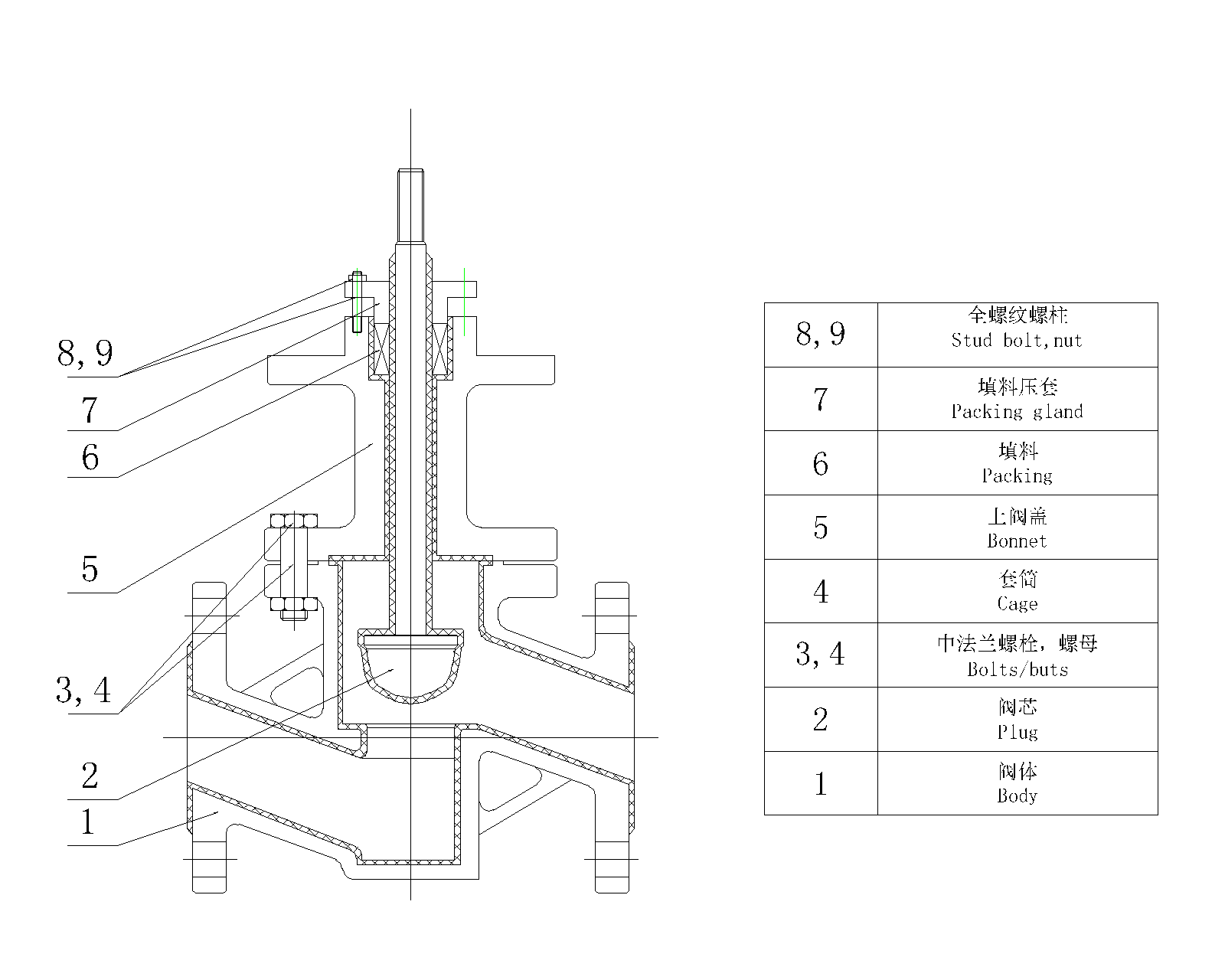

Pneumatic fluorine lined control valve is composed of two parts of the valve body of the pneumatic diaphragm actuator straight-through single-seat fluorine-lined control valve. It adopts the top guide structure and is equipped with a multi-spring actuator, which has the advantages of compact structure, light weight, sensitive action, S-streamline fluid passage, small pressure drop loss, large valve capacity, accurate flow characteristics, and convenient disassembly and assembly.


It is widely used to accurately control the process parameters of gas, liquid and other media to keep the pressure, flow, temperature and liquid level at a given value. The parts of the pneumatic Fluorine lined control valve body contacting the corrosive medium are all made of corrosion-resistant and anti-aging PFEP, high-pressure fluoroplastic lining technology, and PTFE bellows sealing. The PTFE-lined pneumatic control valve can control the flow of highly corrosive media such as acid and alkali, as well as toxic and volatilized gas and liquid media. Therefore, the PTFE-lined pneumatic control valve is widely used in chemical, metallurgical, pharmaceutical and other industries.

Body Face To Face Lenth:

PN10/PN16DN1520253240506580100125150200250300
NPS1/2"3/4"1"1-1/4"1-1/2"2"2-1/2"3"4"5"6"8"10"12"
lenth130150160180200230290310350400480600622698
