High-pressure control valve vibration and noise problems and control strategies

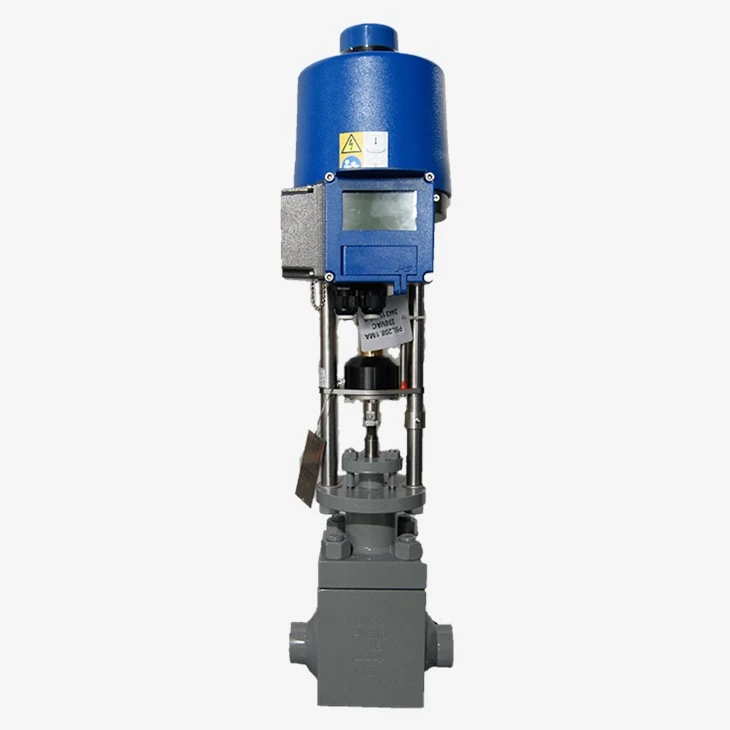

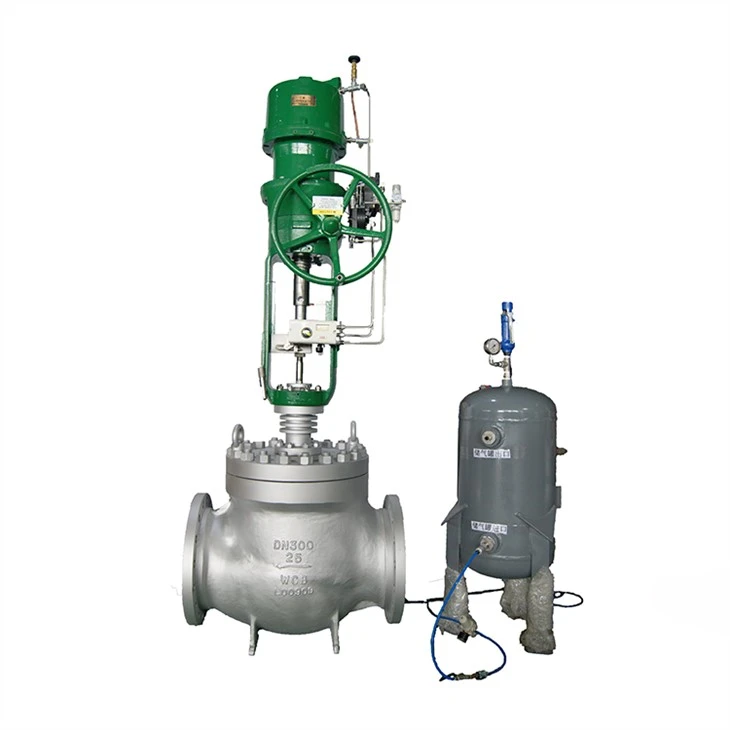

High-pressure control valves, as critical components in industrial process control, are widely used in numerous fields such as petroleum, chemical, power, and metallurgy. They play an irreplaceable role in regulating fluid flow, pressure, temperature, and other parameters, directly impacting the operational stability of industrial systems, product quality, and production efficiency. For instance, in petroleum refining processes, high-pressure control valves precisely regulate the flow and pressure of crude oil, ensuring that refining reactions occur under appropriate conditions; in the power industry, they adjust the flow and pressure of steam to guarantee the normal operation of steam turbines.

However, vibration and noise issues frequently occur during the operation of high-pressure control valves. Vibration not only accelerates the wear and tear of valve components, reducing the valve's service life, but may also induce vibrations in the pipeline system, leading to potential safety hazards such as loosened connections and leaks. Noise, on the other hand, pollutes the working environment, adversely affecting the physical and mental health of personnel and reducing work efficiency. Moreover, severe vibration and noise issues can compromise the stability of the entire industrial system, resulting in production accidents and economic losses.

Therefore, in-depth research on the vibration and noise issues of high-pressure control valves and their control strategies is of significant practical importance. By elucidating the mechanisms behind vibration and noise generation and developing effective control methods, it is possible to reduce vibration and noise levels, enhance valve reliability and service life, ensure the safe and stable operation of industrial systems, improve the working environment, and promote sustainable industrial development.



Fluid Dynamic Factors
Flow Turbulence
Flow turbulence is one of the primary causes of vibration and noise in high-pressure control valves. According to fluid dynamics theory, the Reynolds number is a key parameter for determining the flow state of a fluid. When the Reynolds number exceeds a certain critical value, the fluid transitions from laminar to turbulent flow. In high-pressure control valves, due to the throttling effect of the valve, the fluid velocity increases sharply, leading to a higher Reynolds number and facilitating the formation of turbulence.

Turbulent flow is characterized by irregular trajectories and intense fluctuating velocities of fluid particles. These fluctuations interact with the valve structure, generating alternating forces that induce vibration. At the same time, the intense disturbances in turbulent flow cause pressure fluctuations within the fluid, resulting in noise. For example, experiments have shown that when fluid passes through a converging-diverging valve, the sudden change in flow path cross-section promotes turbulence, significantly increasing valve vibration and noise. The reference book Fundamentals of Fluid Mechanics provides a detailed explanation of the mechanisms and characteristics of turbulence, offering a theoretical basis for understanding its impact on valve vibration and noise.

Fluid Pressure Pulsation
Fluid pressure pulsation is another common factor contributing to vibration and noise in high-pressure control valves. In practical industrial systems, periodic pump operation, pipeline resonance, and other factors can cause fluid pressure pulsations. When the frequency of these pressure pulsations approaches or matches the natural frequency of the valve, resonance occurs, leading to a sharp increase in vibration and noise.

For instance, in a chemical plant's circulating water system, unstable pump speed caused pressure pulsations in the water. These pulsations were transmitted through the pipeline to the high-pressure control valve, resulting in noticeable vibration and noise. Monitoring and analysis of the system revealed that the frequency of the pressure pulsations was close to the natural frequency of the valve, triggering resonance. The literature Analysis and Control of Pressure Pulsations in Industrial Pump Systems provides an in-depth study of the sources, propagation patterns, and control methods of pressure pulsations, offering valuable insights for addressing valve vibration and noise issues caused by such phenomena.



Mechanical Structural Factors
Loose Valve Components
During long-term operation of high-pressure control valves, components such as bolts and nuts are prone to loosening due to fluid impact, vibration, and other factors. Loose parts reduce the connection stiffness of the valve structure. Under fluid forces, relative motion occurs between components, leading to vibration and noise.

From a mechanical perspective, when components become loose, the constraint conditions of the valve structure change, altering its vibration modes. Under excitation from fluid forces, loosened parts move irregularly, colliding and rubbing against adjacent components, thereby generating noise. For example, during maintenance of a high-pressure control valve in a power plant, it was found that loose flange bolts caused severe vibration and noise during operation. Tightening the bolts significantly reduced the vibration and noise. The reference Fundamentals of Mechanical Vibration provides a theoretical analysis of vibration issues caused by component loosening, offering support for addressing such problems.

Component Wear
Key parts such as valve seats and discs are subject to wear over prolonged use due to fluid erosion, corrosion, and mechanical friction. Wear alters the structural dimensions and shape of these components, affecting the fluid flow state and thereby inducing vibration and noise.

For instance, wear on the valve seat can compromise the sealing surface between the disc and the seat, resulting in fluid leakage. The leaking fluid generates turbulence at the valve outlet, producing noise. Additionally, wear changes the forces required to open and close the valve, leading to unstable valve motion and vibration. Actual valve maintenance reports indicate that as wear progresses, the level of vibration and noise increases accordingly. The literature Wear and Life Assessment of Valve Components studies the mechanisms, influencing factors, and life prediction methods of valve part wear, providing a basis for maintenance and replacement.

Structural Resonance
Resonance is a major cause of intensified vibration in high-pressure control valves. When the frequency of an external excitation force approaches or matches the natural frequency of the valve structure, resonance occurs, sharply increasing amplitude and significantly enhancing vibration and noise.

Modal analysis can determine dynamic characteristics such as natural frequencies and mode shapes of the valve structure. Experimental modal analysis reports show that high-pressure control valves have distinct natural frequencies and mode shapes at different orders. Resonance occurs when the frequency of external excitations-such as fluid pressure pulsations or mechanical vibrations-matches one of the natural frequencies of the valve. For example, during the operation of a high-pressure control valve in a petroleum refining plant, a sudden increase in vibration and noise was observed under specific conditions. Modal analysis and frequency monitoring identified that fluid pressure pulsation frequency was close to the natural frequency of the valve, causing resonance. Adjusting system operating parameters to change the excitation frequency prevented resonance. The reference Modal Analysis and Application in Mechanical Structures details the principles, methods, and applications of modal analysis, offering technical means to resolve valve resonance issues.



Valve Flow Path Design Optimization
Adoption of Streamlined Flow Paths
The implementation of a streamlined flow path design helps reduce fluid resistance within the valve and minimizes turbulence, thereby effectively mitigating valve vibration and noise. The shape of a streamlined flow path aligns with the natural flow behavior of the fluid, allowing it to pass smoothly through the valve while reducing flow separation and vortex formation.

Computational Fluid Dynamics (CFD) simulations indicate that, compared to conventional flow paths, streamlined designs result in a more uniform fluid velocity distribution and significantly lower turbulence intensity. In a practical valve retrofit case, after modifying the flow path of a high-pressure control valve to a streamlined design, comparative monitoring data before and after optimization showed an approximately 30% reduction in vibration acceleration and a decrease of about 5 dB in noise sound pressure level. The reference Application of Computational Fluid Dynamics in Valve Design provides a detailed explanation of CFD technology in valve flow path design, offering both theoretical foundation and technical support for streamlined flow path development.

Rational Design of Flow Path Cross-Sectional Changes
Abrupt changes in flow path cross-sectional area can cause sharp variations in fluid velocity and pressure, often leading to turbulence and vibration. Therefore, rational configuration of cross-sectional transitions is a crucial measure for reducing valve vibration and noise. By adopting a gradually varying cross-sectional design, fluid flow within the passage can be stabilized, minimizing fluid impact and disturbance.

A practical valve modification case demonstrated that after replacing a sudden cross-sectional change in a high-pressure control valve with a gradual transition, valve vibration and noise were significantly improved. Prior to the modification, the valve exhibited considerable vibration and noise during operation. After the redesign, vibration acceleration decreased by approximately 25%, and the noise sound pressure level was reduced by about 4 dB. The literature Research on Optimal Design of Valve Flow Path Cross-Sectional Area offers an in-depth study on how cross-sectional variations affect valve performance, providing theoretical guidance for the design of gradual transitions.



Structural Improvements of Valve Components
Optimization of Disc Shape
The shape of the disc significantly influences fluid flow characteristics as well as valve vibration and noise. By optimizing the disc geometry, the flow behavior can be improved, reducing turbulence and pressure fluctuations, thereby mitigating vibration and noise.

The design of new disc shapes is typically based on fluid dynamics principles and experimental studies. For instance, the use of a streamlined disc can reduce the impact force of the fluid on the disc, resulting in lower vibration and noise. Experimental data indicate that, compared to traditional disc designs, the new streamlined disc reduces vibration acceleration by approximately 20% and noise sound pressure level by about 3 dB. The reference Study on Disc Shape Optimization for High-Pressure Control Valves provides a detailed description of disc shape optimization methods and experimental results, offering valuable insights for disc design improvements.

Reinforcement of Component Connections
Strengthening the connection structures of valve components helps reduce vibration and noise caused by loosening. Methods such as using high-strength bolts and adding anti-loosening devices can enhance the connection stiffness and reliability of components, preventing loosening during operation.

Field monitoring data from actual valve operations show that measures such as applying high-strength bolts and anti-loosening washers effectively reduce component loosening, significantly lowering vibration and noise levels. For example, after implementing these improvements on a high-pressure control valve in a chemical plant, vibration acceleration decreased by approximately 15%, and the noise sound pressure level was reduced by about 2 dB. The literature Strength Analysis and Improvement of Valve Component Connections investigates strength analysis and enhancement methods for component connections, providing technical support for reinforcing connection structures.



Material Selection and Vibration/Noise Reduction Design
Use of Low-Noise Materials
Materials suitable for high-pressure control valves should possess excellent damping and sound-absorbing properties. Damping materials dissipate vibrational energy by converting it into heat, thereby reducing vibration amplitude; sound-absorbing materials attenuate noise generated by fluid flow, minimizing its propagation.

Material performance test reports indicate significant differences in the damping and sound absorption capabilities of various materials. For instance, rubber materials exhibit favorable damping properties and can effectively reduce valve vibration; materials such as fiberglass and mineral wool demonstrate strong sound absorption performance, helping to suppress noise transmission. In practical applications, the use of low-noise materials in critical components-such as rubber bushings for discs and seats, or sound-absorbing wraps for the valve housing-can markedly decrease vibration and noise levels. The reference Research on the Application of Low-Noise Materials in Valves provides a detailed introduction to the characteristics and uses of such materials, offering guidance for material selection.

Addition of Vibration and Noise Reduction Components
Common vibration and noise reduction components include dampers and silencers. Dampers absorb and dissipate vibrational energy through the deformation of elastic elements, reducing vibration transmission; silencers mitigate noise generated by fluid flow by attenuating sound energy via absorption, reflection, and interference mechanisms.

Practical engineering cases demonstrate that the proper installation of vibration and noise reduction components can effectively decrease vibration and noise in high-pressure control valves. For example, after installing dampers on a high-pressure control valve at a power company, vibration acceleration was reduced by approximately 40%; mounting a silencer at the valve outlet resulted in a noise sound pressure level reduction of about 8 dB. The literature Application of Vibration and Noise Reduction Components in Valve Systems offers a detailed explanation of the types, working principles, and installation methods of such components, providing technical guidance for their implementation.



Active Control Based on Sensor Monitoring
Composition and Working Principle of the Sensor Monitoring System
The active control system based on sensor monitoring primarily consists of vibration sensors, noise sensors, pressure sensors, and other components. Vibration sensors are used to monitor parameters such as the valve's vibration acceleration and frequency in real time; noise sensors measure the sound pressure level of noise around the valve; pressure sensors monitor changes in fluid pressure.

These sensors transmit the collected signals to a data acquisition system, which processes the signals through amplification, filtering, and other operations before sending them to the controller. The controller analyzes and processes the signals according to preset control algorithms to evaluate the operating status and vibration/noise levels of the valve, then outputs control signals to the actuator. Based on these control signals, the actuator adjusts parameters such as valve opening and fluid flow rate, thereby achieving active control of valve vibration and noise. The literature Application of Sensor Technology in Industrial Valve Monitoring provides a detailed description of the composition and working principles of the sensor monitoring system, offering a theoretical foundation for system design and application.

Case Study: Active Control Project for a High-Pressure Control Valve in a Chemical Plant
A high-pressure control valve in a chemical plant exhibited excessive vibration and noise during operation, impacting production safety and the working environment. To address this issue, the plant implemented an active control project based on sensor monitoring.

Project Background:
The high-pressure control valve was used to regulate the flow of chemical raw materials. Due to the complex flow characteristics of these materials, the valve frequently experienced vibration and noise levels exceeding standards during operation.

Implementation of Active Control Strategy:
First, vibration sensors, noise sensors, and pressure sensors were installed on the valve to collect operational parameters in real time. The acquired signals were then transmitted to the data acquisition system and controller. The controller analyzed and processed the signals based on predefined control algorithms. When vibration or noise levels exceeded the set thresholds, the controller sent control signals to the electric actuator to adjust the valve opening, thereby modifying the fluid flow and pressure to reduce vibration and noise.

Control Effectiveness:
Comparative analysis of monitoring data before and after implementation showed that active control reduced the valve's vibration acceleration by approximately 50% and the noise sound pressure level by about 10 dB, effectively resolving the vibration and noise issues. The project acceptance report documented and evaluated the implementation process and control results in detail, providing a valuable reference for similar projects.





Application of Intelligent Control Algorithms
Common Intelligent Control Algorithms
Common intelligent control algorithms include fuzzy control and neural network control. Fuzzy control is a method based on fuzzy logic that does not require an exact mathematical model and can handle uncertain and ambiguous information. By establishing a fuzzy rule base, input variables (such as vibration acceleration and noise sound pressure level) are mapped to output variables (such as valve opening adjustment), enabling intelligent control of the valve.

Neural network control is a method that mimics the structure of the human brain's neural network, possessing capabilities such as self-learning, adaptability, and nonlinear mapping. By training a neural network model, it can automatically adjust output signals based on input signals, thereby achieving precise control of the valve. The literature Application of Intelligent Control Algorithms in Mechanical Vibration Control provides a detailed introduction to the principles and characteristics of intelligent control algorithms, offering a theoretical foundation for their use in valve vibration and noise control.

Case Study: Intelligent Control System for a High-Pressure Control Valve in a Power Company
A high-pressure control valve in a power company was significantly affected by fluctuations in steam flow and pressure, resulting in prominent vibration and noise issues. To achieve intelligent control of valve vibration and noise, the company adopted intelligent control algorithms.

Project Requirements and Valve Operating Characteristics:
The high-pressure control valve was used to regulate steam flow, with frequent changes in steam parameters demanding high control precision and rapid response from the valve.

Selection of Intelligent Control Algorithm and System Design Approach:
Based on the valve's operating characteristics, a fuzzy control algorithm was selected. First, input variables were defined as vibration acceleration, noise sound pressure level, and steam pressure, while the output variable was set as the valve opening adjustment. A fuzzy rule base was then established, defining fuzzy relationships between input and output variables based on experience and practical knowledge. Finally, a fuzzy controller was designed to achieve intelligent control of the valve.

System Performance:
Evaluation of system performance and reduction in vibration and noise levels showed that the intelligent control system effectively mitigated valve vibration and noise. Even under significant variations in steam parameters, the valve responded quickly and adjusted its opening to maintain stable operation. Vibration acceleration was reduced by approximately 45%, and the noise sound pressure level decreased by about 8 dB. The project's technical summary report provided a detailed analysis of the selection of intelligent control algorithms, system design, and operational outcomes, offering practical experience for the application of intelligent control algorithms in valve control.







Implementation of Adaptive Control Strategies
Concept and Principles of Adaptive Control
Adaptive control is a strategy capable of automatically adjusting control parameters in response to changes in system operating conditions. By continuously monitoring the system's output signals and performance indicators and comparing them with preset target values, it autonomously modifies controller parameters based on deviations to maintain optimal system performance.

In the context of vibration and noise control in high-pressure control valves, adaptive control can dynamically modify control strategies and parameters according to variations in fluid parameters and vibration/noise levels during valve operation, enabling effective mitigation of vibration and noise. The literature Application of Adaptive Control Theory in Industrial Systems provides a comprehensive introduction to the concept, principles, and implementation methods of adaptive control, offering theoretical support for its application in valve control.

Case Study: Adaptive Control Project for a High-Pressure Control Valve in a Petroleum Refining Enterprise
A high-pressure control valve in a petroleum refining enterprise faced complex operational variations, such as fluctuations in crude oil flow, pressure, and temperature, resulting in challenging vibration and noise issues. To address this problem, the enterprise implemented an adaptive control project.

Challenges and Complexity of Valve Vibration and Noise:m
The diversity in crude oil properties and frequent changes in operating conditions caused the valve's vibration and noise to exhibit nonlinear and time-varying characteristics, making traditional control methods inadequate.

Implementation Steps and Key Technologies of Adaptive Control Strategy:
First, a dynamic model of the valve was established, accounting for the influence of factors such as fluid parameters and vibration/noise on valve performance. Next, an adaptive controller was designed, incorporating parameter self-tuning algorithms to automatically adjust control parameters based on real-time monitoring of valve operating conditions. Key technologies included model identification, parameter estimation, and adaptive control algorithm design.

Evaluation of Economic and Environmental Benefits After Implementation:
Post-implementation assessments of economic and environmental benefits demonstrated a significant reduction in valve vibration and noise. Vibration acceleration decreased by approximately 60%, and the noise sound pressure level was reduced by about 12 dB. Additionally, valve reliability and service life improved, reducing equipment maintenance and replacement costs while minimizing environmental impact. The project evaluation report provided a detailed analysis of the implementation process, economic gains, and environmental benefits, offering practical evidence for the application of adaptive control strategies in valve control.



Conclusion
This study provides a comprehensive and in-depth investigation into the vibration and noise issues of high-pressure control valves. The primary causes of vibration and noise were first analyzed, including fluid dynamic factors such as flow turbulence and pressure pulsation, as well as mechanical structural factors such as component loosening, wear, and structural resonance. These factors interact with each other, collectively contributing to the generation of valve vibration and noise.

Subsequently, methods for reducing vibration and noise through structural optimization were explored, including improvements in valve flow path design, component structural enhancements, and material selection with vibration and noise reduction considerations. Practical applications have demonstrated that these structural optimization measures can effectively reduce vibration and noise levels while improving valve reliability and service life.

Furthermore, practical cases of active control strategies were introduced, including sensor-based active monitoring, the application of intelligent control algorithms, and the implementation of adaptive control strategies. These active control approaches enable real-time adjustment of control parameters based on the operating status of the valve, achieving effective suppression of vibration and noise with notable results.

In the future, vibration and noise control technologies for high-pressure control valves will evolve toward greater intelligence, adaptive capability, and integration. With the continuous development of technologies such as artificial intelligence and the Internet of Things, intelligent sensors, smart control algorithms, and adaptive control strategies will see broader application, ultimately enabling more precise and efficient management of valve vibration and noise.
