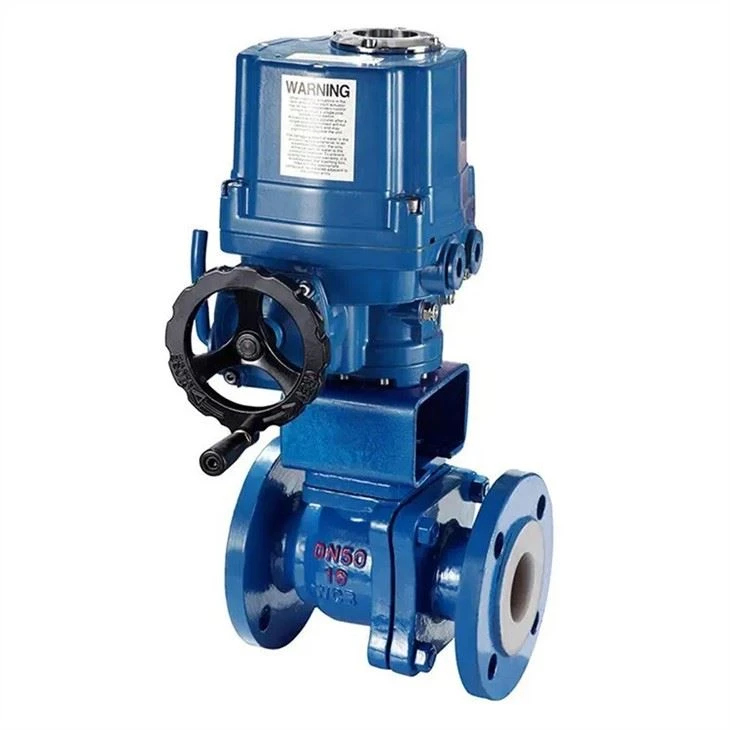

Electric Fluorine Lined Ball Control Valve
The inner cavity and sphere of the fluorine-lined ball valve adopt high-pressure injection molding process, and are lined with corrosion-resistant and aging-resistant F46 or PTFE, so it has reliable corrosion resistance and sealing performance
Description
The inner cavity and sphere of the electric fluorine lined ball control valve adopt high-pressure injection molding process, which has reliable corrosion resistance and sealing performance. Its lining is made of F46 or polytetrafluoroethylene which is corrosion-resistant and aging-resistant, which can be well applied to strong corrosive media such as acid and alkali. The electric fluorine lined ball control valve with small flow resistance and large flow capacity can be widely used in chemical, petroleum, metallurgy, medicine, electric power and other industries.
Main features
* No leakage structure design at the connection end
* Small flow resistance, large flow capacity
* Applicable chemical medium
* Simple structure, easy operation and maintenance
Parameters
Nominal diameter | DN15-DN400 1/2"~16" |
Nominal pressure | 1.0Mpa-4.0Mpa |
Applicable temperature | -10℃~180℃ |
Applicable medium | Strong acid, strong base, strong oxidant |
Valve material | Cast iron, cast steel, stainless steel |
Ball material | Stainless steel |
Applicable Temperature | PEP -20℃~+100℃ |
Optional accessories | Solenoid valve, positioner, limit switch, filter pressure reducing valve, hand wheel, etc. |
Operation | Pneumatic/ Electric, etc |
